Milking parlours

Agriculture - agrotechnics | Cattle farming | Milking parlours


More than 50 year‘s of tradition in the production of milking facilities ensures and provides a guarantee of quality and experience. Facilities under the name our name are famous in many countries trouhout the world. Collaboration with resarch institutes and universities speeds up our resarch and helps put new findings into practice.



Milking technology

MILKING PARLOURS AND MILKINKG TECHNOLOGY

  • all types of milking parlours
  • wide variety of equipment and price relations
  • long-lasting strong, welded, zinc coated structures
  • stainless steel stable constructions also available
  • milking technology with simple automatics or top system made by AFIFARM
  • complete range of accessories



COMPUTERISED HERD MANAGMENT SYSTEM

  • automatic identification of dairy cows
  • movement monitoring system (active pedometry)
  • automatic heat monitoring
  • automatic animal selection
  • automatic feeding boxes
  • automatic animal weighing


MILKING PARLOURS ACCESSORIES

  • mechanical barriers
  • recycling of sluice water – economical program
  • rinsing of milking house stalls



PIPELINE MILKING FACILITIES

  • prefabricated system for tie-up stables
  • AFI system with flow recorder can be installed


SLUBBER MILKING FACILITIES

  • mobile 1- or 2-slubber facilities
  • stationary slubber facilities (e.g. for birthing stalls)



We are offering systems for milking:

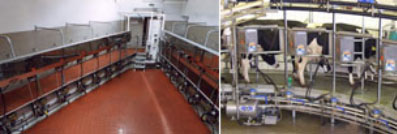

  • Tandem milking parlour

  • Herringbone milking parlours

  • Parallell milking parlour

  • Carousel milking parlours

  • Milking parlor accessories



Tandem milking parlour


  • especially suitable for small and medium-sized herds
  • perfect view of dairy cows’ bodies
  • individual access to animals
  • high work productivity
  • size and shape of tandem milking parlour can be modifed to a U-shape, or it can be single sided
  • gates controlled by manual lever mechanism or pneumatic cylinders, or can be fully automatic (autotandem)
  • milking parlour can be fitted with various degrees of automation of milking process including milk measuring and identification or ATA-25 automation

Herringbone milking parlours



  • the most popular and common type of milking house
  • especially suitable for medium-sized and large herds
  • dairy cows placed at an angle next to each other
  • creates good working conditions for operators
  • entry and exit gates controlled by a pneumatic system or manually, using a lever mechanism
  • milking hopuse can be fitted with various degrees of automation of the milking process, including milk measuring and identification


Dovetail milking houses can also be laid out as TRIGON or POLYGON. These types have some advantages,including faster group changeover and thus troughput of the milking house. The operator has a better viewof the cows


CONSTRUCTIONS TYPES OF HERRINGBONE PARLOURS:

KLASIK herringbone milking parlours stalls:

  • milking parlours stalls with 1200 mm span
  • construction allows excellent acces to dairy cow udders
  • dairy cows sorted using head barriers on wall or on steel columns
  • entry and exit gates controlled by vacuum cylinders or manually, using lever mechanisms



IDEAL herringbone milking parlours stalls

  • milking parlour stalls with spans of 910, 1000 or 1200 mm
  • stall construction with defecation plates
  • mechanically adjustablechest barrier to suit herd size
  • stalls include stainless cover for installation of air-conditioning, pulsators, pilot valves and electrical wiring
  • entry and exit gates controlled by vaccum or manually, using lever mechanism



PRES herringbone milking parlours stalls:

  • pneumatically controlled chest barrier makes it easier to line up dairy cows with different body sizes and gives operator better access to udders
  • milking parlours stalls with spans of 910, 1000 or 1200 mm
  • stall construction with defecation plates
  • stalls include stainless cover for installation of air-conditioning, pulsators, pilot valves and electrical wiring
  • entry and exit gates and pressure chest barrier controlled by air pressure
  • fixings help to push cattle into milking house and give better access to udders
  • fixing speed up exit from milking house and eliminate risk of injury


RAPID EXIT herringbone milking parlours stalls:

  • massive construction with pneumatically controlled chest barrier, cows exit in groups
  • milking parlours stalls with spans of 910, 1000 or 1200 mm
  • stall construction with defecation plates
  • stalls include stainless cover for installation of air-conditioning, pulsators, pilot valves and electrical wiring
  • entry and exit gates and pressure chest barrier controlled by air pressure



This system is especially suitable for farms with a higher concentration of milk cows, wher the group exit system greatly increases the troughput of the milking house.

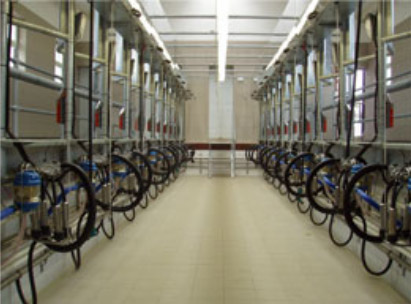

Parallel milking parlour

  • sturdy, side by side stall construction for milking from behind with a span of 730 mm
  • especially suitable for large herds
  • minimum lenght cuts entry time to milking house
  • high work productivity, shortens operator changeover
  • minimalizes chance of miling machines being kicked
  • stalls fitted with stainless defecation plates with a trough to drain excrement – increases cleanliness of milking house stalls
  • stalls include stainless cover for installation of air-conditioning, pulsators, pilot valves and electrical wiring
  • milking parlour can be fitted with various degrees of automation of miling process including milk measuring and identification
  • milking parlour can be equipped with facility to release cows one by one

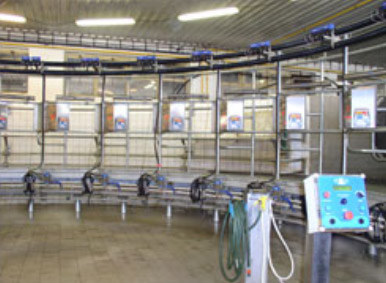

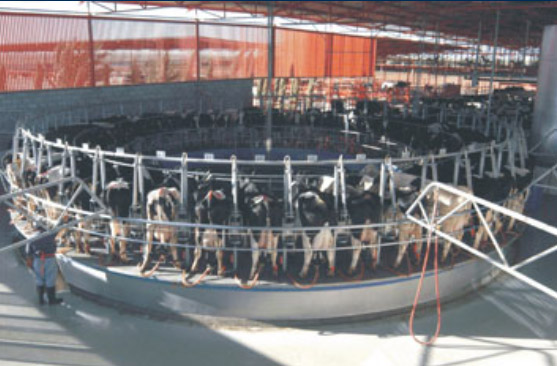

CAROUSEL MILKING PARLOURS

  • suitable for large herds – high work productivity
  • parallel, dovetail and tandem stall layout
  • cows easily visible
  • creates better coditions for milking work
  • sturdy construction
  • highly durable underbody
  • movement is smooth and very quiet

Carousel milking parlour with parallel stall layout




RECONSTRUCTION OF ORIGINAL MILKING HOUSES

Stalls of the KD 14T carousels milking parlours:

  • milking parlour DZKD-15, ZD5-033 (15 boxes) and DZKD 110 (16 boxes) – produced by AGROSTROJ Pelhřimov, a.s. – can be installed in a circle with the minimum of building modifications
  • tandem box layout
  • individual inside dosing possible
  • troughput of milking house up to 100 cows per hour


Stalls of the KD 24R carousels milking parlours:

  • milking parlour DZKD-15, ZD5-033 (15 boxes) and DZKD 110 (16 boxes) – produced by GREEN GROUP – can be installed in a circle with the minimum of building modifications
  • dovetail box layout
  • troughput of milking house up to 130 cows per hour

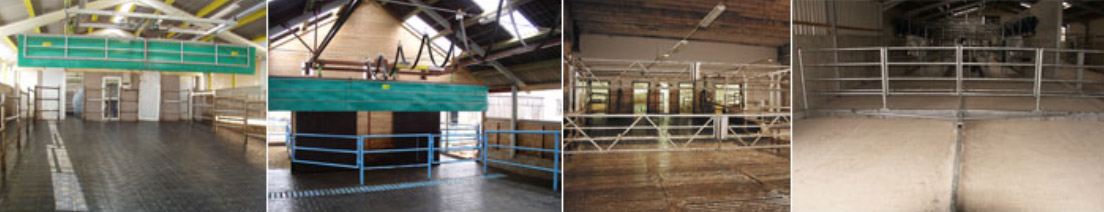

Milking parlour accessories

MILKING PARLOUR ACCESSORIES

We can also supply barriers for pre-milking waiting areas:

  • AM 2000 mechanical barrier (overhead)
  • MP 97 mechanical barrier (on boards)

Channeling barriers can be installed in rectangular or square waiting ares. Milking with mechanical channeling barriers makes it easier for cattle to enter the milking parlour, greatly increasing productivity. Channeling barriers can be fitted with an audible movement signal and an electric post which is especially suitable for new systems, where cattle have to be „taught“ to enter the milking house. If required we can also make a hydraulic channeling barrier with manure shovels on the bottom. Suitable for wide and long waiting areas.

CLASSIC PIPELINE MILKING FOR BINDING STABLES

The Pneumatic pipeline of the milking facility is placed directly in the dairy cow stable. It consists of dairy pressure pipes running entire lenght of the stable and can be positioned as required. The source of the vacuum – the vacuum pump, the drainage of the milk into the cooling tank, the pipe pipe rinsing and milking itself are controlled by a control unit, which can be moved along between each dairy cow.


ELECTRONIC PIPELINE MILKING FACILITIES

A world leader in its field. It adapts the most modern elements of the milking house to existing fixed stables. Needs no complicated stable reconstruction or new milking house and does not require a large investment.

Gain advantages over your competitors:

  • Automatic data collation
  • Top quality milk flow-meter tested by ICAR
  • Automatic machine removal
  • Health of each dairy cow monitored
  • Early detection of mastitis
  • Fast return of investment due to use of Afifarm THM (Total Herd Management)

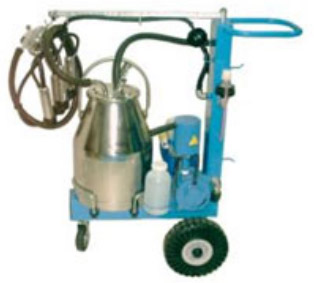

SLUBBER MILKING FACILITIES

Mobile milking facilities are for small producers breeding cows, goats and sheep. Slubber milking guarantees consistent milk properties and hygienically clean milk. The customer can choose from a variety of designs.

  • single-slubber milking facilities
  • two-slubber milking facilities
  • synchronous or asynchronous model
  • choice of milking sets for cows, goats or sheep
  • mobile or stationary models
  • powered by 220V or 380V
  • size of stainless slubber 16 to 25 litres
